Issues with ASPECT model for simple subduction

ASPECT
1

Hi everyone,
I’m encountering an issue with negative temperature in my simulations involving dislocation creep or diffuse creep.

QQ截图20250402002936
QQ截图202504020029361891×298 16.5 KB

I’ve tried adjusting various parameters, but the problem persists. I’m hoping someone can provide guidance on what I should try next.
I’ve uploaded my .prm file, initial composition and temperature .txt file, and the log file for reference.

com
com1792×707 122 KB

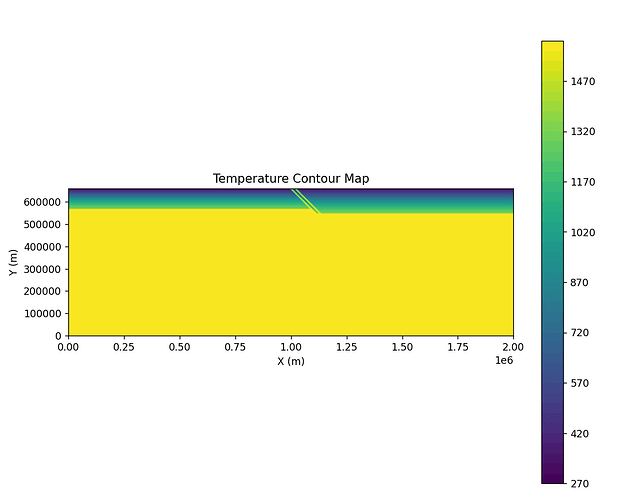

tem
tem1106×870 24.4 KB

Additionally, I’m confused about the density profile, which seems incorrect, and I can’t identify which parameter might be causing the issue.
density
density1208×424 13.6 KB

Any suggestions or insights would be greatly appreciated. Thank you in advance for your help!
result.txt (65.2 KB)
last_nophase.prm (7.1 KB)
data.zip (1.6 MB)
tem_py.txt (3.8 KB)
com_py.txt (3.9 KB)

2

I’m encountering an issue with negative temperature in my simulations involving dislocation creep or diffuse creep.

The screenshot you posted of the error message actually indicates that the issue is a negative pressure, which is on the order of -41 GPa … something is clearly off.

The solver convergence from the first time steps also shows that the model is new iterating towards a reasonable solution. One or more things is clearly off in the model setup.

I suggest checking the pressure field and prescribed boundary conditions as a first step.

Cheers,
John
